New V&A Day-Lit Gallery - Construction Images

The images below are all from an article on BD Online about the MUMA Refurbishment of the V&A's Medieval and Renaissance Galleries, focusing on the creation of a new day-lit space between 2 buildings.

This was the existing lightwell which was only discovered after MUMA had been appointed to do the refurbishment. The project was initially much smaller but on discovery of this lightwell MUMA proposed a more ambitious project which was backed by the museum.

This is a visualisation of the space by MUMA. I like the almost ghostly quality of the image and the way light is represented.

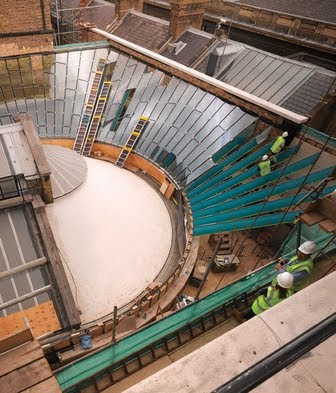

The glass roof under construction. The roof cost 1.1 million and was an engineering challenge. It sits 14m above floor level and 73 glass beams span between the 2 buildings. The roof undulates as the pitch and length of the beams change, the roof slope varies between 19 and 39 degrees.

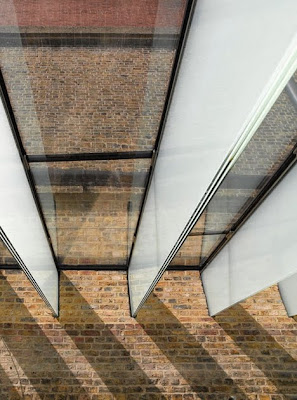

The glass beams appear to disappear into the brickwork, there are no obvious connections to distract the eye and the roof appears to float.
